Tutorial 5: Induction Heads¶

Paper: In-context Learning and Induction Heads by Olsson et al. (Anthropic, 2022)

Difficulty: Intermediate-Advanced | Time: 2-3 hours

Overview¶

This tutorial demonstrates how to identify and analyze induction heads - attention heads that implement a pattern completion algorithm. Given the pattern [A][B]...[A], an induction head predicts [B].

Induction heads are fundamental to in-context learning, enabling transformers to:

Copy patterns they've seen before
Learn from examples in the prompt
Perform few-shot learning

We'll use mlxterp's visualization module to detect and analyze these heads.

Prerequisites¶

mlxterp installed with visualization dependencies
Basic understanding of attention mechanisms
Familiarity with mlxterp tracing (see Quick Start)

# Install with visualization support
pip install mlxterp[viz]

Part 1: Understanding Induction Heads¶

The Induction Algorithm¶

Induction heads work in two steps:

Previous Token Head: Attends from [A] to the token before [A] (i.e., [A] attends to what came before the first occurrence of [A])
Induction Head: Uses the previous token information to attend to [B] (the token that followed [A] previously)

For example, with the sequence "The cat sat on the mat. The cat":

When processing the second "cat", the induction head attends to "sat" (what came after "cat" previously)
This allows the model to predict "sat" as the next token

Why This Matters¶

Induction heads are the mechanism behind:

Pattern completion: A B A → B
In-context learning: Learning from examples in the prompt
Few-shot learning: Generalizing from limited examples

Part 2: Visualizing Attention Patterns¶

Setup¶

from mlxterp import InterpretableModel
from mlxterp.visualization import (
    get_attention_patterns,
    attention_heatmap,
    detect_induction_heads,
    detect_head_types,
    induction_score,
    previous_token_score,
    AttentionVisualizationConfig,
)
import matplotlib.pyplot as plt
import numpy as np

# Load model
model = InterpretableModel("mlx-community/Llama-3.2-1B-Instruct-4bit")

Basic Attention Heatmap¶

Let's start by visualizing a basic attention pattern:

text = "The cat sat on the mat"

with model.trace(text) as trace:
    pass

tokens = model.to_str_tokens(text)
patterns = get_attention_patterns(trace, layers=[5])

config = AttentionVisualizationConfig(colorscale="Blues", mask_upper_tri=True)
fig = attention_heatmap(
    patterns[5],
    tokens,
    head_idx=0,
    title="Layer 5, Head 0 Attention Pattern",
    backend="matplotlib",
    config=config
)

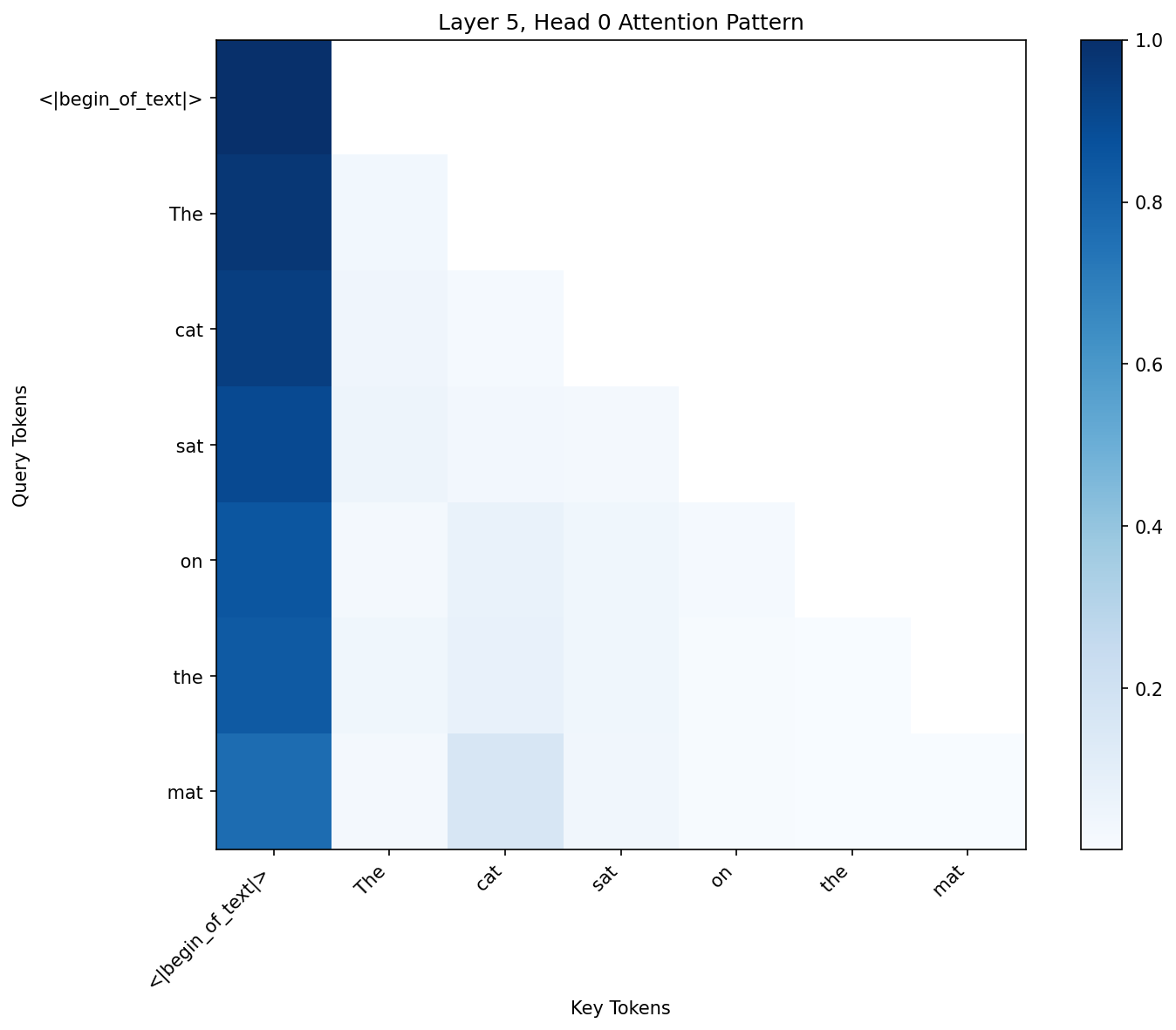

Basic Attention Heatmap

Figure 1: Basic attention heatmap showing which tokens (y-axis) attend to which tokens (x-axis). The upper triangle is masked because causal attention only allows attending to previous positions.

Comparing Attention Across Layers¶

Different layers have different attention patterns. Early layers often show local patterns (previous token attention), while later layers show more complex relationships:

text = "Hello world"
with model.trace(text) as trace:
    pass

tokens = model.to_str_tokens(text)
patterns = get_attention_patterns(trace)

# Create grid comparing early (L0) vs late (L12) layers
fig, axes = plt.subplots(2, 4, figsize=(16, 8))
# ... visualization code

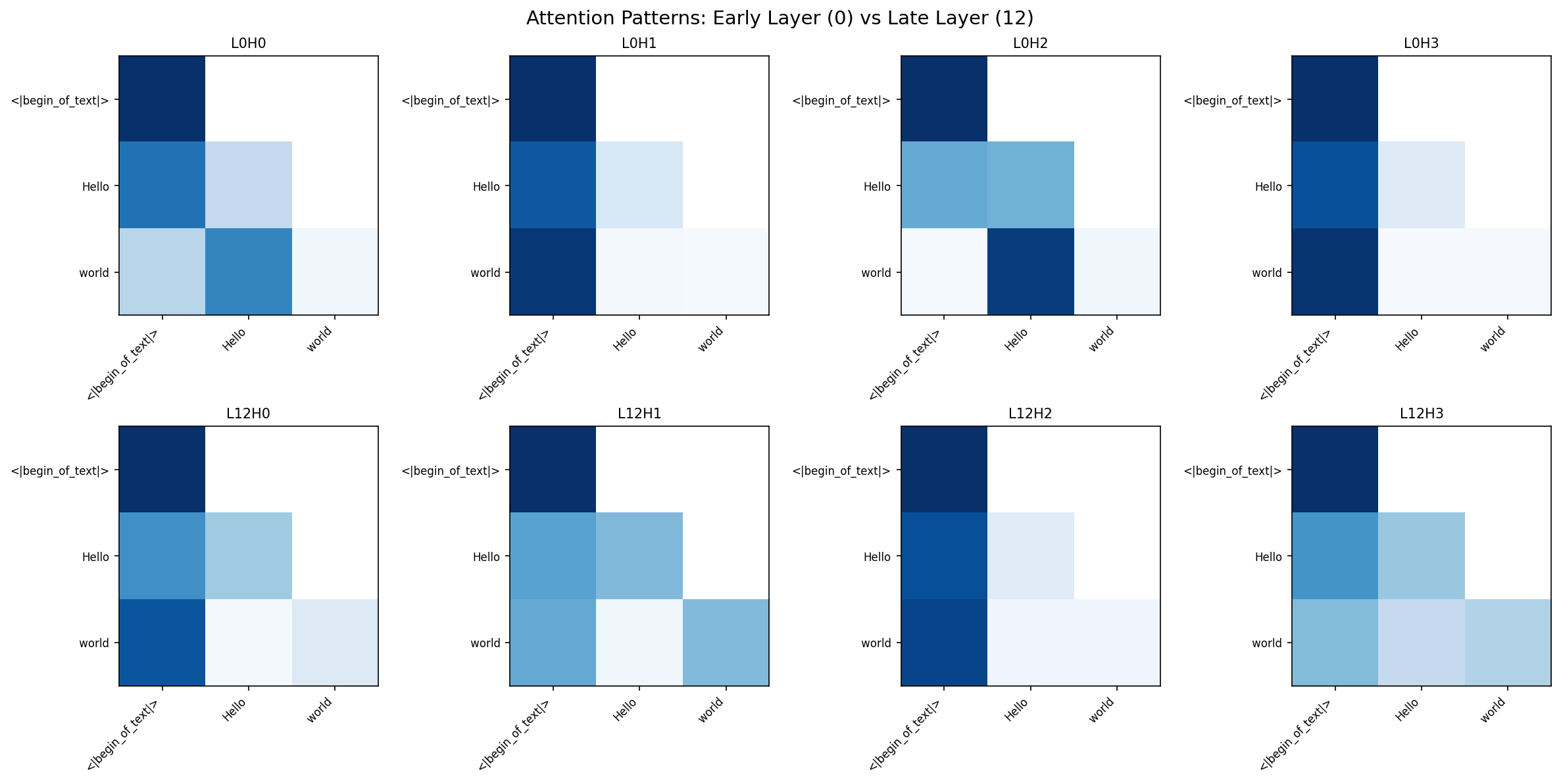

Attention Grid

Figure 2: Comparison of attention patterns in early layers (Layer 0, top row) vs late layers (Layer 12, bottom row). Notice how early layer patterns are more uniform, while later layers show more specialized attention.

Part 3: Detecting Induction Heads¶

Method 1: Using `detect_induction_heads`¶

The most reliable way to detect induction heads is using repeated random sequences:

# Detect induction heads across all layers
induction_heads = detect_induction_heads(
    model,
    n_random_tokens=50,    # Length of random sequence
    n_repeats=2,           # Repeat twice: [random tokens][random tokens]
    threshold=0.3,         # Score threshold
    seed=42                # For reproducibility
)

print(f"Found {len(induction_heads)} potential induction heads\n")

# Show top 10
print("Top Induction Heads:")
print("-" * 40)
for head in induction_heads[:10]:
    print(f"  Layer {head.layer:2d}, Head {head.head:2d}: score = {head.score:.3f}")

Output:

Found 14 induction heads

Top Induction Heads:
----------------------------------------
  Layer 10, Head 23: score = 0.891
  Layer  5, Head 10: score = 0.890
  Layer 12, Head 15: score = 0.668
  Layer  2, Head 26: score = 0.550
  Layer 12, Head 13: score = 0.467
  ...

Why random tokens? Using random tokens eliminates semantic patterns that might confuse the detection. The only structure the model can use is the repeated sequence itself.

Induction Scores Across Layers¶

Let's visualize where induction heads appear in the model:

Induction Scores by Layer

Figure 3: Maximum induction score per layer. Induction heads primarily appear in middle layers (5, 10, 12), consistent with the original paper's findings.

Complete Induction Score Heatmap¶

For a comprehensive view of all heads:

# Generate random repeated sequence
np.random.seed(42)
n_tokens = 30
random_tokens = np.random.randint(5000, vocab_size - 5000, size=n_tokens)
repeated = np.tile(random_tokens, 2)

token_ids = mx.array([repeated.tolist()])
with model.trace(token_ids) as trace:
    pass

patterns = get_attention_patterns(trace)

# Compute induction scores for all 16 layers × 32 heads

Induction Score Heatmap

Figure 4: Induction scores for all 512 attention heads (16 layers × 32 heads). Hot spots indicate strong induction behavior. Notable high-scoring heads: L10H23 (0.891), L5H10 (0.890), L12H15 (0.668).

Part 4: Detecting Other Head Types¶

Head Type Distribution¶

Besides induction heads, models have several other attention patterns:

head_types = detect_head_types(
    model,
    "The quick brown fox jumps over the lazy dog",
    threshold=0.3,
    layers=list(range(16))
)

print("Head Type Distribution:")
for head_type, heads in head_types.items():
    if heads:
        print(f"  {head_type}: {len(heads)} heads")

Output:

Head Type Distribution:
  previous_token: 12 heads
  first_token: 510 heads
  current_token: 22 heads

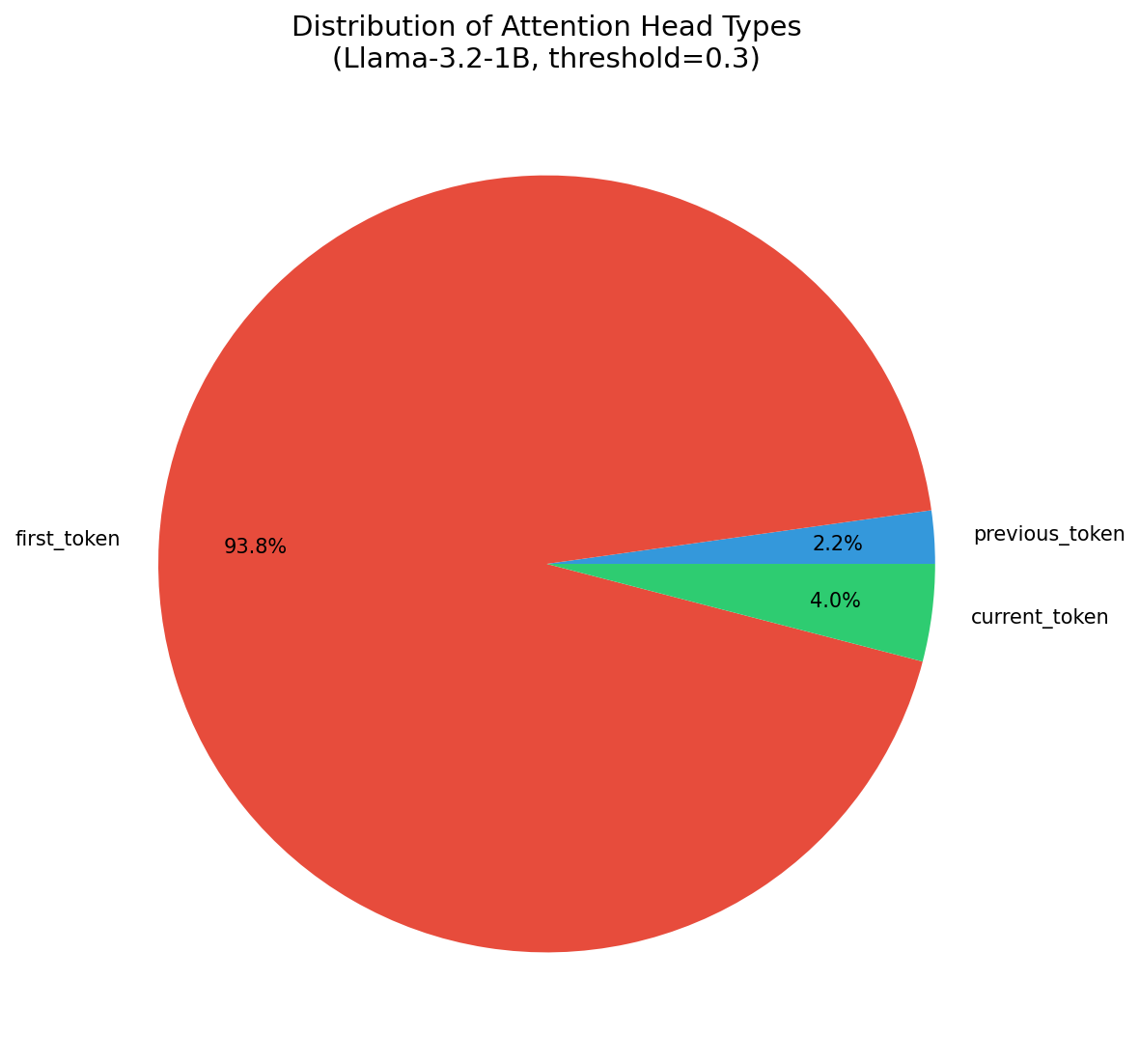

Head Type Distribution

Figure 5: Distribution of attention head types in Llama-3.2-1B. First token (BOS) heads dominate, followed by current token and previous token heads.

Previous Token Heads¶

Previous token heads are essential for induction. They appear in early layers:

text = "The quick brown fox"
with model.trace(text) as trace:
    pass

patterns = get_attention_patterns(trace, layers=[0, 1, 2, 3])

# Find head with highest previous_token_score
# Best: L0H2 with score 0.747

Previous Token Head

Figure 6: Previous token head (L0H2, score=0.75). Notice the strong diagonal pattern - each position attends primarily to the immediately preceding position.

Part 5: Understanding the Two-Step Composition¶

The K-Composition Mechanism¶

Induction heads work through K-composition:

Previous Token Head (Early Layer): At position p, writes information about token at p-1 into the residual stream
Induction Head (Later Layer): Reads the "what came before" information in its key, allowing it to attend to the token that followed a previous occurrence

# Visualize the composition on repeated text
text = "ABC DEF ABC DEF"
with model.trace(text) as trace:
    pass

tokens = model.to_str_tokens(text)
patterns = get_attention_patterns(trace)

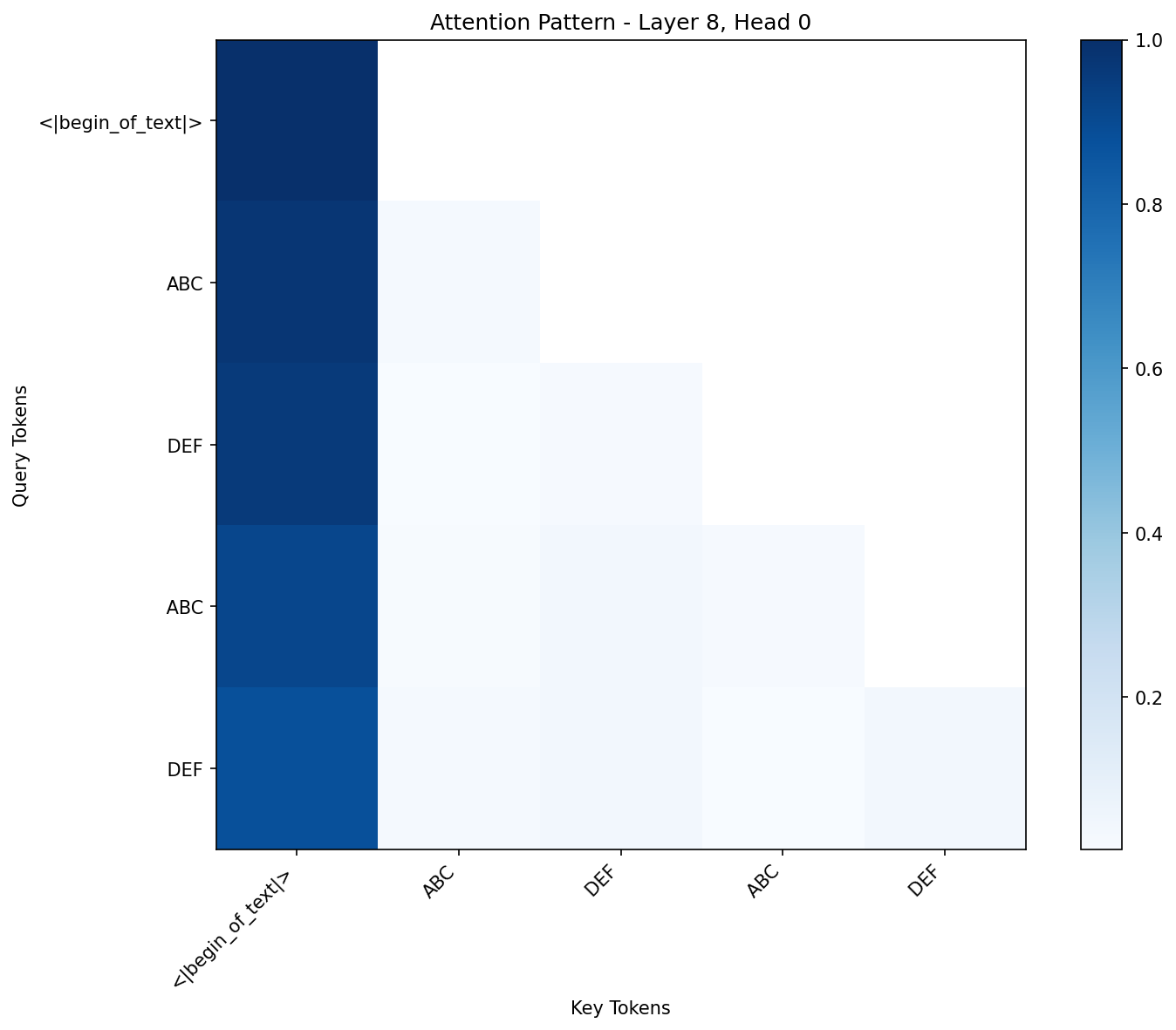

Induction Pattern Example

Figure 7: Attention pattern on repeated text "ABC DEF ABC DEF". The pattern shows how tokens in the second occurrence can attend to corresponding positions in the first occurrence.

Part 6: Pattern Score Analysis¶

Comparing Pattern Scores Across Layers¶

Let's see how previous token and first token scores evolve through layers:

text = "The quick brown fox jumps"
with model.trace(text) as trace:
    pass

patterns = get_attention_patterns(trace)

# Compute scores for all heads in layers 0, 4, 8, 12
fig, axes = plt.subplots(1, 4, figsize=(16, 4))
# ... (compute and plot previous_token and first_token scores)

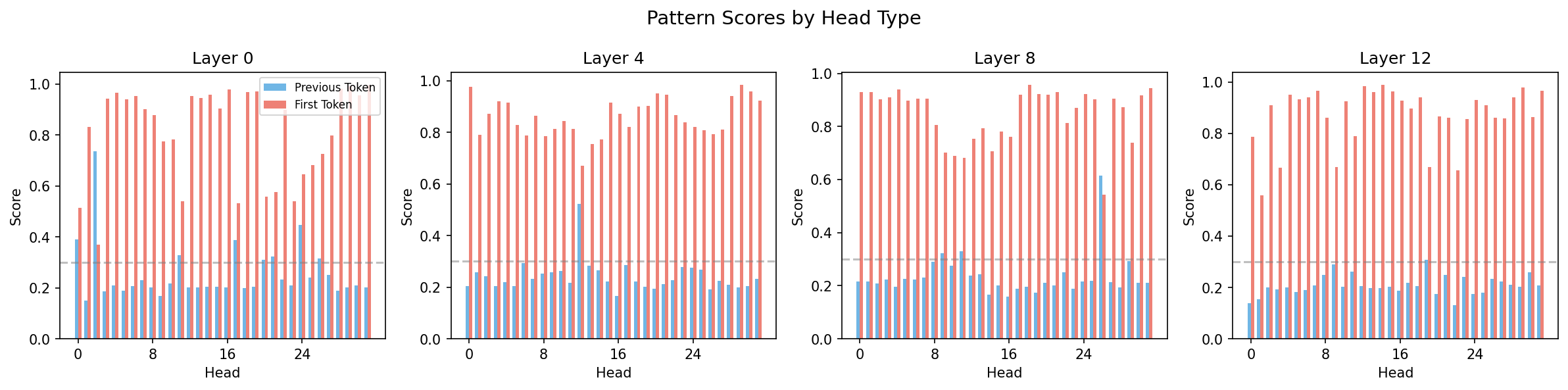

Pattern Score Comparison

Figure 8: Pattern scores across layers. Blue = previous token score, Red = first token score. Early layers (0) have strong first token attention, while this pattern persists but varies across later layers. Previous token heads appear sparsely across all layers.

Part 7: Ablation Study¶

To confirm a head's importance, we can ablate it:

from mlxterp import interventions as iv

text = "The cat sat on the mat. The cat"

# Normal completion
with model.trace(text) as trace:
    normal_output = model.output.save()

normal_pred = model.get_token_predictions(normal_output[0, -1, :], top_k=1)
normal_token = model.token_to_str(normal_pred[0])
print(f"Normal prediction: '{normal_token}'")

# Ablate layer 10 attention (where we found strong induction heads)
with model.trace(text, interventions={"model.model.layers.10.self_attn": iv.zero_out}):
    ablated_output = model.output.save()

ablated_pred = model.get_token_predictions(ablated_output[0, -1, :], top_k=1)
ablated_token = model.token_to_str(ablated_pred[0])
print(f"After ablating L10 attention: '{ablated_token}'")

Expected behavior: Ablating layers with strong induction heads (L5, L10, L12) should disrupt pattern completion, potentially changing the prediction from the expected "sat" to something else.

Part 8: Complete Analysis Pipeline¶

Here's a complete pipeline combining all techniques:

def full_induction_analysis(model_name, save_prefix="induction"):
    """Complete induction head analysis for a model."""
    print("=" * 60)
    print(f"Induction Head Analysis: {model_name}")
    print("=" * 60)

    model = InterpretableModel(model_name)

    # 1. Detect induction heads
    induction_heads = detect_induction_heads(model, n_random_tokens=50, threshold=0.3)
    print(f"\nFound {len(induction_heads)} induction heads")
    for head in induction_heads[:5]:
        print(f"  L{head.layer}H{head.head}: {head.score:.3f}")

    # 2. Detect other head types
    head_types = detect_head_types(model, "Sample text", threshold=0.3)
    print(f"\nHead type distribution:")
    for htype, heads in head_types.items():
        if heads:
            print(f"  {htype}: {len(heads)} heads")

    # 3. Visualizations (saved to files)
    # ... (as shown in previous sections)

    return {
        'induction_heads': induction_heads,
        'head_types': head_types
    }

results = full_induction_analysis("mlx-community/Llama-3.2-1B-Instruct-4bit")

Summary¶

In this tutorial, we learned to:

Visualize attention patterns: Heatmaps showing token-to-token attention
Detect induction heads: Using detect_induction_heads with random sequences
Classify head types: Previous token, first token, current token heads
Understand K-composition: How previous token + induction heads work together
Perform ablation studies: Confirming causal importance

Key Findings for Llama-3.2-1B¶

Finding	Details
Top Induction Heads	L10H23 (0.89), L5H10 (0.89), L12H15 (0.67)
Induction Head Layers	Primarily layers 5, 10, 12
Previous Token Heads	12 heads, best is L0H2 (0.75)
First Token Heads	510 heads (dominates the distribution)

Key Takeaways¶

Induction heads are universal: They appear in most transformer models
Layer location matters: Induction heads typically appear in middle-to-late layers
Previous token heads are prerequisites: They appear in early layers and enable induction
Repeated random tokens are the gold standard: For detecting induction heads

References¶

Olsson, C., et al. (2022). In-context Learning and Induction Heads. Anthropic.
Elhage et al. (2021). A Mathematical Framework for Transformer Circuits. Anthropic.
Wang et al. (2022). Interpretability in the Wild: a Circuit for Indirect Object Identification.
